Round Bushes


Flat Bushes


MATERIAL En 8 En 8
HARDNESS 55 TO 60 HRC NITRIDED TO VICKERS HARDNESS 300 TO 400
FINISH ID & OD GROUND INSIDE FLAT BROACHED & OD GROUND

The Bushes are used in Moulding Boxes and Match Plates. The Round Bushes are Hardened to above 55 HRC and Ground internally & externally to get accurate dimensions.The Flat Bushes are inside Broached, OD Ground and Nitrided to 300 to 400 Vickers Hardness.

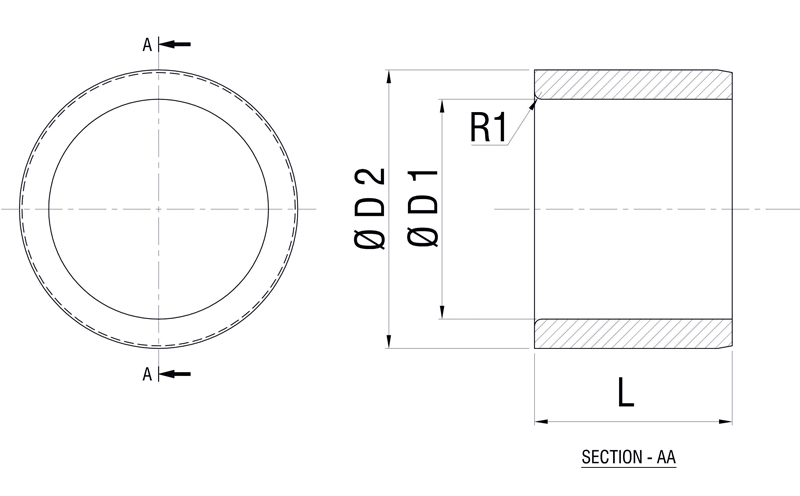

MOULD BOX BUSH (ROUND)

MOULD BOX BUSH ROUND

Hardened - 50 TO 55 HRC
Finish          -  Ground Internally & Externally
Customer required size is also entertained

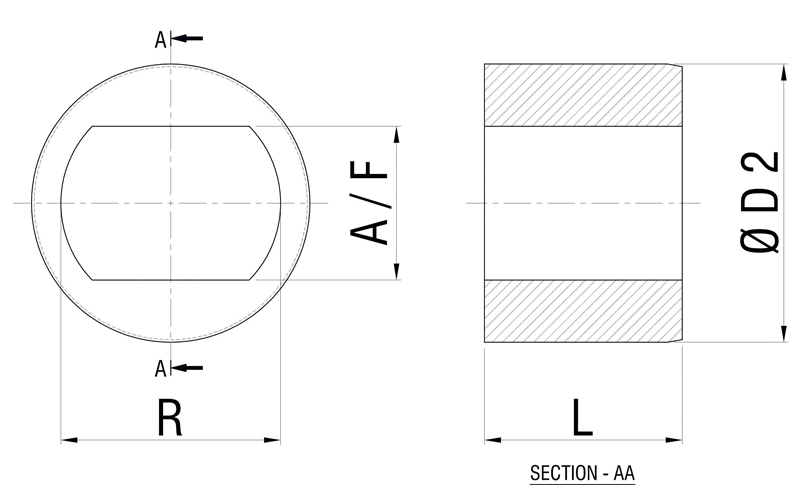

MOULD BOX BUSH FLAT

Nitriding    -  300 TO 400 VICKERS
Finish - Broached Internally &  Grounded Externally And Nitrited
Customer Required Size Is Also Entertained
