Round Bushes


Flat Bushes


MATERIAL En 8 En 8
HARDNESS 55 TO 60 HRC NITRIDED TO VICKERS HARDNESS 300 TO 400
FINISH ID & OD GROUND INSIDE FLAT BROACHED & OD GROUND

The Bushes are used in Moulding Boxes and Match Plates. The Round Bushes are Hardened to above 55 HRC and Ground internally & externally to get accurate dimensions.The Flat Bushes are inside Broached, OD Ground and Nitrided to 300 to 400 Vickers Hardness.

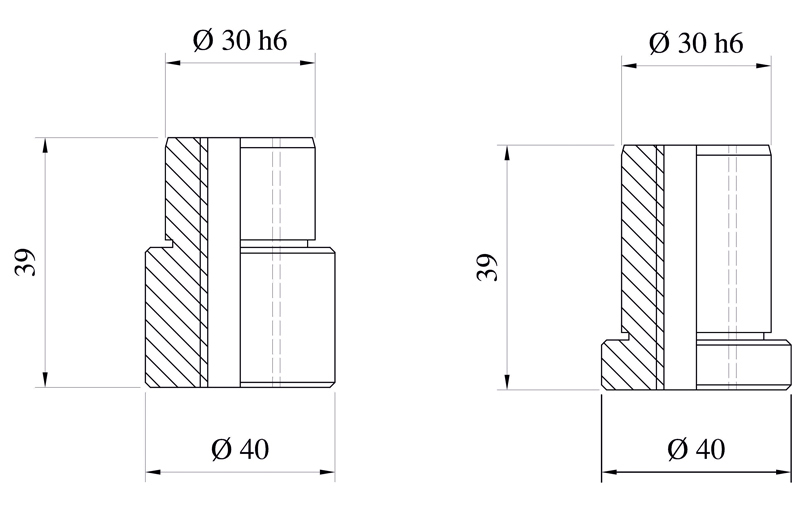

MACHINE TABLE Guide Bush

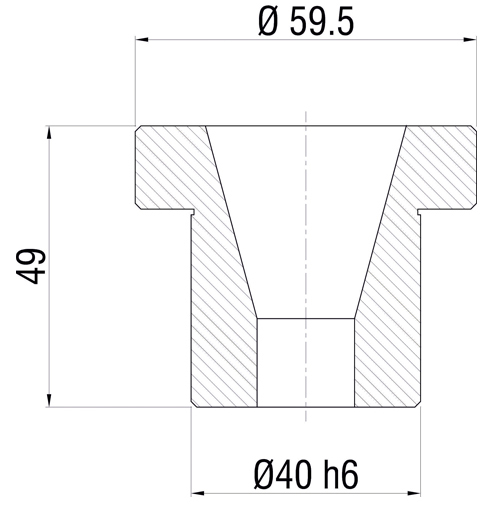

MACHINE TABLE BUSH

C.I. MATCH PLATE BUSH FLAT
